    产品特点:

    1920x1080 分辨率

    LED 背光

    宽温

    电阻触摸屏

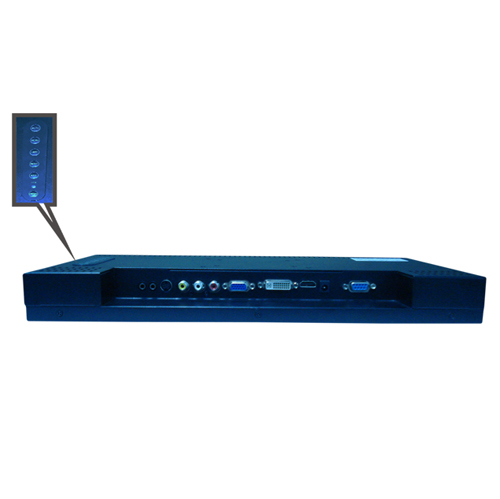

    VGA/DVI/AV/HDMI/S-Video 接口

    亮度270nits

    应用行业:工业设备、轨道交通等

    Contact Us
    规格参数
    型号           Model Name
    AMG-15IPAM01T1
    屏幕尺寸   Screen Size
    15.6"
    显示区域   Active Display Area (mm)
    344.16(H)x193.59(V)
    像素点       Pixel Pitch (mm)
    0.17925(H)x0.17925(V)
    显示模式   Display Mode
    Normally white
    分辨率       Display Resolution (pixel)
    1920X1080
    对比度       Contrast Ratio
    400:1
    颜色像素   Display Color
    262k
    亮度           Brightness (CD/㎡)
    270
    背光           Backlight
    LED
    可视角度    Viewing Angles (CR =10)
    140 (H); 120 (V)
    响应时间    Response Time(Typ.Tr+Tf)
    8ms
    信号接口    Signal Connector
    VGA/DVI/AV/HDMI/S-Video
    电源接口    Power Consumption
    DC 12V
    外观尺寸    Dimension(VxHxT)
    306.6x230.1x57
    工作温度    Operating Temperature
    -30~80℃
    储存温度    Storage Temperature
    -30~80℃
    相对湿度    Relative Humidity
    5(%RH)~90(%RH)
