    产品特点:

    环保、节能

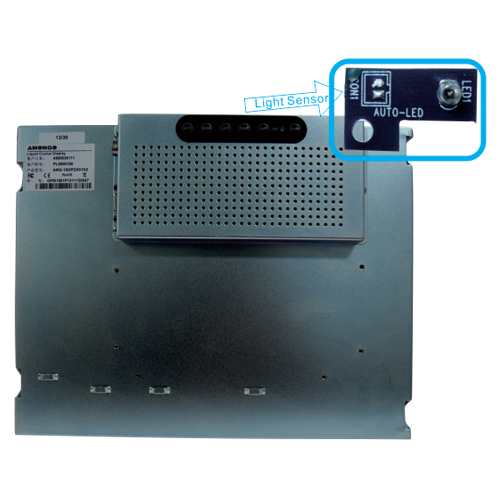

    光感应、阳光下自动调节

    LED 背光

    宽温

    160 (H); 140 (V) 视角

    对比度1000:1

    应用行业:ATM显示设备等

    Contact Us
    规格参数
    型号           Model Name
    AMG-15OPDX01N5
    屏幕尺寸   Screen Size
    15"
    显示区域   Active Display Area (mm)
    304.128(H) x228.096(V)
    像素点       Pixel Pitch (mm)
    0.297x0.297
    显示模式   Display Mode
    Normally white
    分辨率       Display Resolution (pixel)
    1024x768
    对比度       Contrast Ratio
    1000:1
    颜色像素   Display Color
    16.2M/262k colors
    亮度           Brightness (CD/㎡)
    Max:400nits  (Light Sensor)
    背光           Backlight
    LED
    可视角度    Viewing Angles (CR =10)
    160 (H); 140 (V)
    响应时间    Response Time(Typ.Tr+Tf)
    8ms

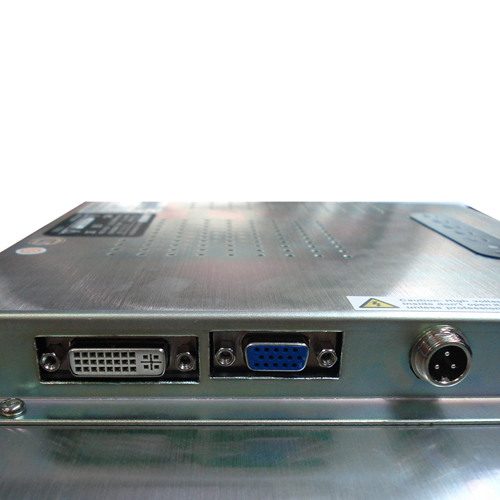

    信号接口    Signal Connector
    VGA/DVI
    电源接口    Power Consumption
    DC 12V
    外观尺寸    Dimension(VxHxT)
    353X261X42.7
    工作温度    Operating Temperature
    -30~85℃
    储存温度    Storage Temperature
    -30~85℃
    相对湿度    Relative Humidity
    5(%RH)~90(%RH)
