    产品特点:

    Android OS

    ROM 4GB

    RAM 1GB

    亮度450cd/㎡

    LED 背光

    电阻触摸屏

    应用行业:广告业、娱乐业等

    Contact Us
    规格参数

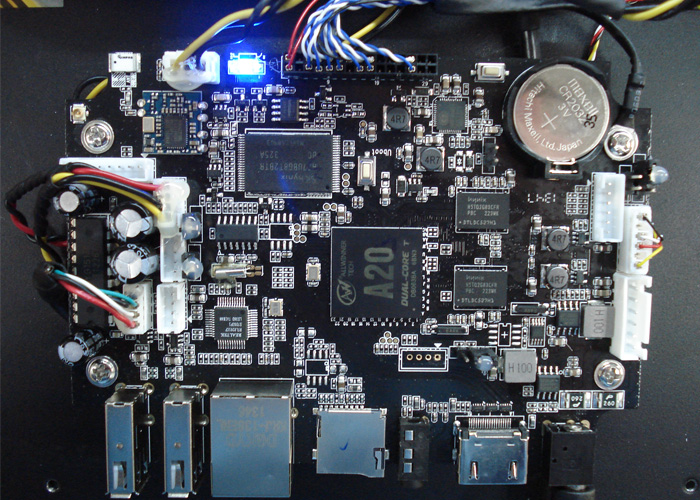

         Processor System
    CPU
    A20 1GHz Dual-core
    ROM
    4GB
    RAM 1GB
    OS Android 4.0
    HDMI port
    1xHDMI
    USB ports
    2xUSB 2.0
    Ethernet
    1x10/100/1000BASE-T Gigabit Ethernet
    CVBS/Audio
    CVBS IN/Left And Right Channels
    SD Card Expansion
    Maximum Storage Expansion:32GB
    LCD Display
    Screen Size
    12.1"
    Active Display Area(mm)
    246(H)x184.5(V)
    Max Resolution
    800x600
    Support Color
    16.2M Colors
    Brightness(CD/㎡)
    450
    Backlight LED
    Contrast Ratio
    700:1
    Pixel Pitch(mm)
    0.3075x0.3075
    Viewing Angles(CR=10)
    160(H);140(V)
    Response Time(Typ.Tr+Tf)
    35ms
    Type Type
    Resistive TouchScreen
    Power supply
    Input Voltage
    +12v@5A
    Dimension(VxHxT)
    285.6x226x50
         Temperature Range
    Operating  Temperature
    -30~85℃
    Storage  Temperature
    -30~85℃
    Relative Humidity
    5(%RH)~90(%RH)
