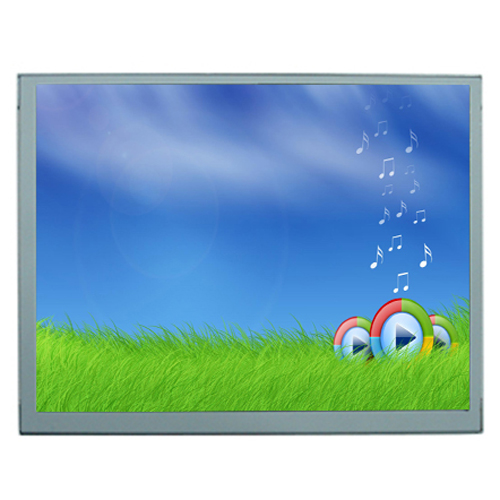

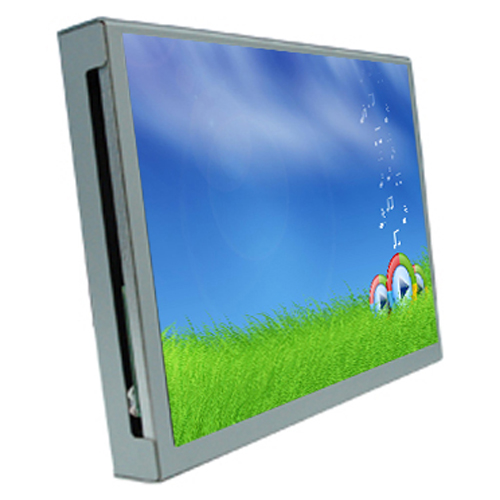

    产品特点:

    开放式易安装

    LED 背光

    亮度300cd/㎡

    800x600分辨率

    触摸屏可选

    应用行业:ATM显示设备、工业设备等

    Contact Us
    规格参数
    型号           Model Name
    AMG-10OPHA03N2
    屏幕尺寸   Screen Size
    10.4"
    显示区域   Active Display Area (mm)
    228.4(H)x175.4(V)
    像素点       Pixel Pitch (mm)
    0.264(H)x0.264(V)
    显示模式   Display Mode
    Normally white
    分辨率       Display Resolution (pixel)
    800x600
    对比度       Contrast Ratio
    500:1
    颜色像素   Display Color
    16.7M
    亮度           Brightness (CD/㎡)
    300
    背光           Backlight
    LED
    可视角度    Viewing Angles (CR =10)
    150 (H); 110 (V)
    响应时间    Response Time(Typ.Tr+Tf)
    35ms

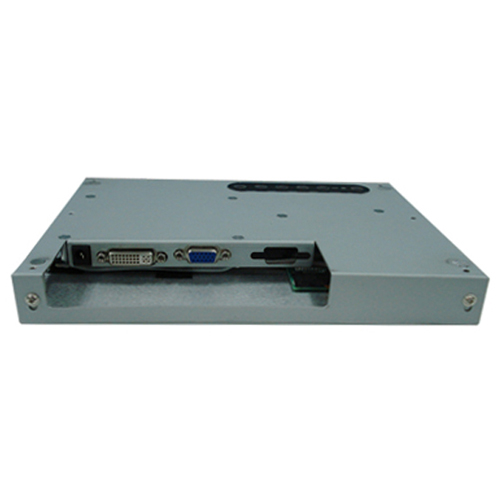

    信号接口    Signal Connector
    VGA/DVI
    电源接口    Power Consumption
    DC 12V
    外观尺寸    Dimension(VxHxT)
    230.5x181.5x29.9
    工作温度    Operating Temperature
    -10~60℃
    储存温度    Storage Temperature
    -20~70℃
    相对湿度    Relative Humidity
    5(%RH)~90(%RH)
