规格参数
|
Processor System |
CPU |
Cortex™-M203 Dual-Core(1GHz) |
|
Memory |
1G DDR3(NAND FLASH 4G optional) | |
| OS |
Android 4.2.4 |
|
|
WiFi |
support |
|
|

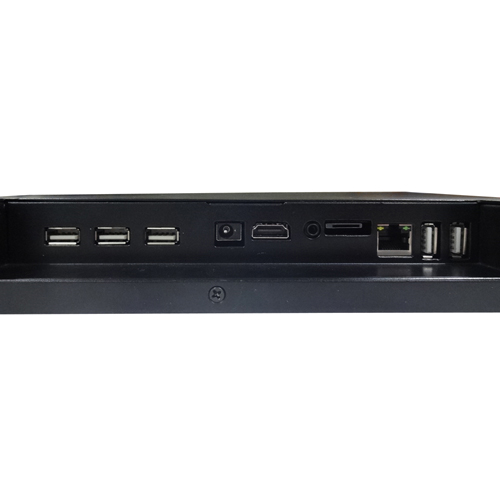

VGA ports |
1x VGA |
|
|
HDMI ports |
1x HDMI |
|
|
USB 2.0 ports |
5x USB 2.0 |
|
|
Image support |
BMP/JPEG/PNG/GIF | |
|
LVDS |
1x LVDS(50/60 Hz) | |
|
Resolution support |
1080 P |
|
|
Ethernet ports |
1x10/100Mbps Ethernet interface |
|
|
Audio |
MIC-IN,Line-out,Line-in | |
|
LCD Display |
Display Size |
10.1" |
|
Max Resolution |
1280x800 |
|
|
Support Color |
262k color |
|
|
Luminance(CD/㎡) |
300 |
|
|
Contrast Ratio |
1300:1 |
|
|
Pixel Pitch (mm) |
0.1695x0.1695 | |
|
Backlight |
LED |
|
|
Viewing Angle |
170(H);170(V) |
|
|
Touch screen(optional) |
Type |
PCT Touch(10 Points) |
|
Power supply |
Input Voltage |
20W(max) |
|
Output Rating |
12V |
|
|
Ouput Voltage |
Ouput Voltage |
|
|
Temperature Range |
Operating Temperature |
-20~60℃ |
|
Storage Temperature |
-30~70℃ |
|
|
Relative Humidity |
5(%RH)~90(%RH) |
