    产品特点:

    全平面镜面设计

    宽视角

    投射触摸屏10点

    VESA安装

    高清

    LED 背光

    应用行业:非现金设备、轨道交通、查询机等

    Contact Us
    规格参数
    型号           Model Name
    AMG-14IPAM01T1
    屏幕尺寸   Screen Size
    14"
    显示区域   Active Display Area (mm)
    309.14(H)x173.89(V)
    像素点       Pixel Pitch (mm)
    0.1611(H)x0.1611(V)
    显示模式   Display Mode
    Normally white
    分辨率       Display Resolution (pixel)
    1920x1080
    对比度       Contrast Ratio
    800:1
    颜色像素   Display Color
    16.2M/262K
    触摸屏    Touch Screnn(optional) PCT Touch(10 points)
    亮度           Brightness (CD/㎡)
    250
    背光           Backlight
    LED
    可视角度    Viewing Angles (CR =10)
    170 (H); 170 (V)
    响应时间    Response Time(Typ.Tr+Tf)
    16ms

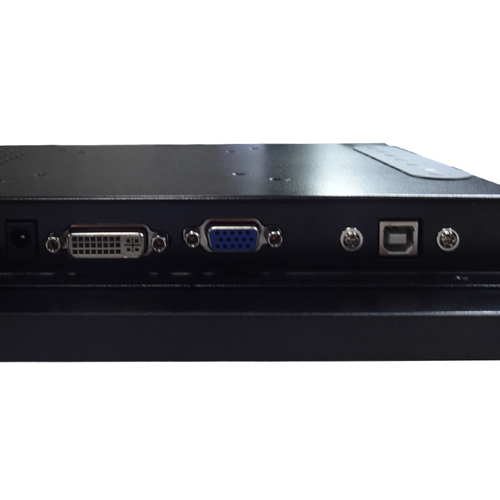

    信号接口    Signal Connector
    VGA/DVI/USB
    电源接口    Power Consumption
    DC 12V
    外观尺寸    Dimension(VxHxT)
    339X224X38.8
    工作温度    Operating Temperature
    0~50℃
    储存温度    Storage Temperature
    -20~60℃
    相对湿度    Relative Humidity
    5(%RH)~90(%RH)
