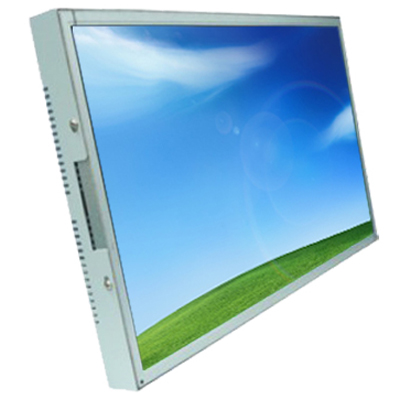

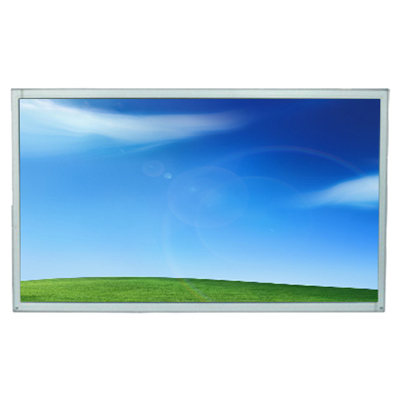

    产品特点:

    嵌入式安装

    1366x768分辨率

    低功耗、低发热量、使用寿命长

    外观整洁美观

    强固型工业级结构设计

    触摸屏可选

    信号方式VGA/DVI

    应用行业:自助查询设备、AFC轨道交通、工业设备等

    Contact Us
    规格参数
    型号           Model Name
    AMG-18OPHA01N1
    屏幕尺寸   Screen Size
    18.5"
    显示区域   Active Display Area (mm)
    409.8(H) x 230.4(V)
    像素点       Pixel Pitch (mm)
    0.3(H)x0.3(V)
    显示模式   Display Mode
    Normally white
    分辨率       Display Resolution (pixel)
    1366x768
    对比度       Contrast Ratio
    1000:1
    颜色像素   Display Color
    16.7M colors
    亮度           Brightness (CD/㎡)
    250
    背光           Backlight
    CCFL/LED
    可视角度    Viewing Angles (CR =10)
    170 (H); 160 (V)
    响应时间    Response Time(Typ.Tr+Tf)
    5ms

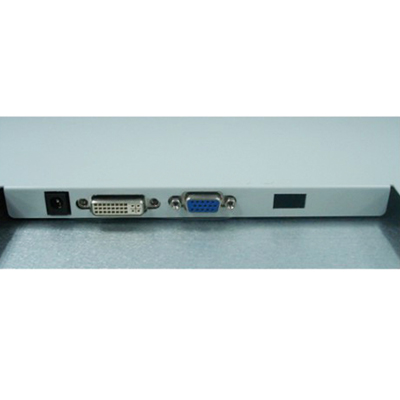

    信号接口    Signal Connector
    VGA/DVI
    电源接口    Power Consumption
    DC 12V
    外观尺寸    Dimension(VxHxT)
    433X257.2X35
    工作温度    Operating Temperature
    0~50℃
    储存温度    Storage Temperature
    -20~60℃
    相对湿度    Relative Humidity
    5(%RH)~90(%RH)
