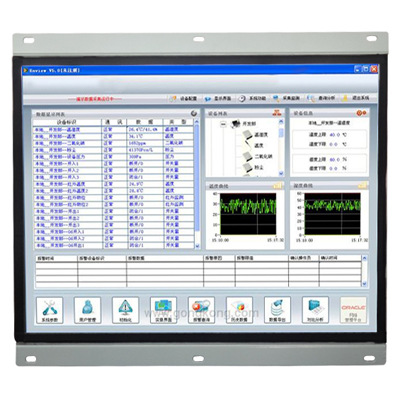

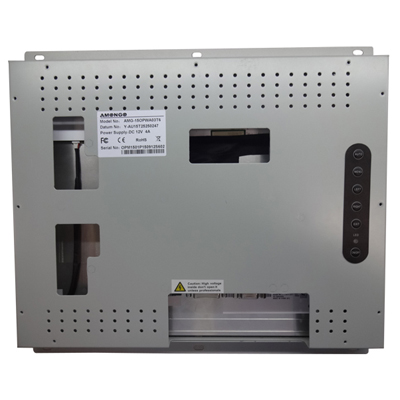

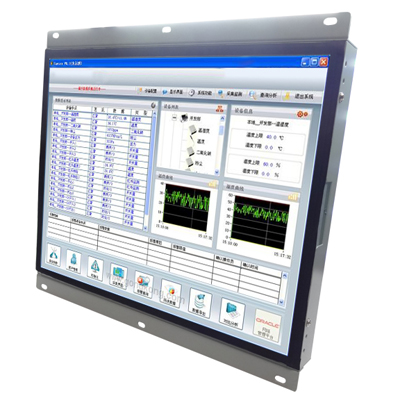

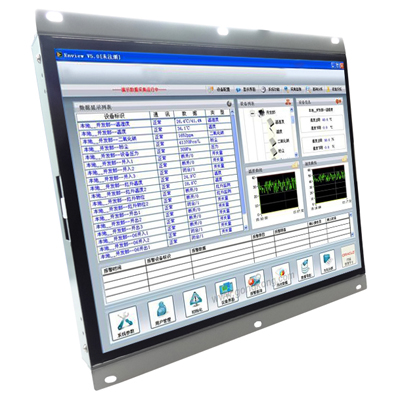

    产品特点:

    支持嵌入式安装,VESA安装

    电阻触摸屏(可选)

    强固型工业级结构设计

    低功耗、低发热量、亮度高、寿命长

    1024x768分辨率

    亮度250nits(可选)

    应用行业:ATM自助取款机、轨道交通、工业自动化等

    Contact Us
    规格参数
    型号           Model Name
    AMG-15OPWA03T6
    屏幕尺寸   Screen Size
    15"
    显示区域   Active Display Area (mm)
    304.128(H) x 228.096(V)
    像素点       Pixel Pitch (mm)
    0.297(H)X0.297(V)
    显示模式   Display Mode
    Normally white
    分辨率       Display Resolution (pixel)
    1024x768
    对比度       Contrast Ratio
    700:1
    颜色像素   Display Color
    16.2M/262K colors
    触摸屏       Touch Screen(optional) Resistive Touchscreen
    亮度           Brightness (CD/㎡)
    250
    背光           Backlight
    CCFL/LED
    可视角度    Viewing Angles (CR =10)
    140 (H); 125 (V)
    响应时间    Response Time(Typ.Tr+Tf)
    8ms

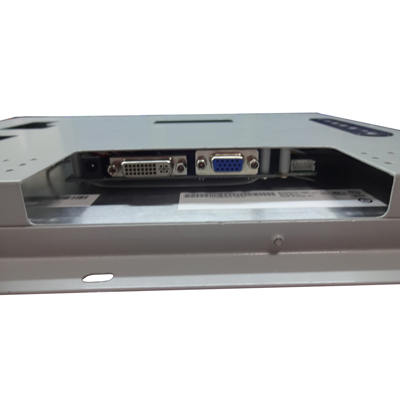

    信号接口    Signal Connector
    VGA/DVI
    电源接口    Power Consumption
    DC 12V
    外观尺寸    Dimension(VxHxT)
    329X293X29
    工作温度    Operating Temperature
    0~65℃
    储存温度    Storage Temperature
    -20~65℃
    相对湿度    Relative Humidity
    5(%RH)~90(%RH)
