    产品特点:

    嵌入式安装

    亮度500cd/㎡

    宽温,耐高温/耐低温

    CCFL/LED背光

    电阻触摸屏

    外观设计简洁美观

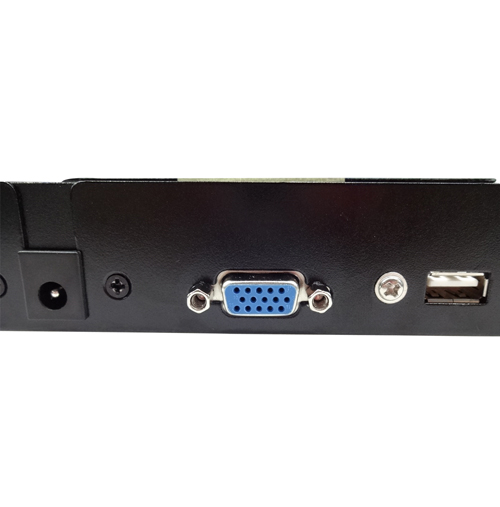

    VGA/USB 接口

    应用行业:匝机口/工业自动化等

    Contact Us
    规格参数
    型号           Model Name
    AMG-06OPPV01T1
    屏幕尺寸   Screen Size
    6.5"
    显示区域   Active Display Area (mm)
    132.48(H) x 99.36(V)
    像素点       Pixel Pitch (mm)
    0.069 (H) x 0.207 (V)
    显示模式   Display Mode
    Normally white
    分辨率       Display Resolution (pixel)
    640x480
    对比度       Contrast Ratio
    450:1
    颜色像素   Display Color
    16.2M/262k colors
    触摸屏       Touchscree(optional) Resistive touchscreen
    亮度           Brightness (CD/㎡)
    500
    背光           Backlight
    CCFL/LED
    可视角度    Viewing Angles (CR =10)
    140 (H); 120 (V)
    响应时间    Response Time(Typ.Tr+Tf)
    26ms
    信号接口    Signal Connector
    VGA/USB
    电源接口    Power Consumption
    DC 12V
    外观尺寸    Dimension(VxHxT)
    199.5X170X36.2
    工作温度    Operating Temperature
    -10~70℃
    储存温度    Storage Temperature
    -20~80℃
    相对湿度    Relative Humidity
    5(%RH)~90(%RH)
