Specifications
|
Model Name |
AMG-14IPAM01T1 |
|
Screen Size |
14" |
|
Active Display Area (mm) |
309.14(H)x173.89(V) |
|
Pixel Pitch (mm) |
0.0537(H)x0.1611(V) |
|
Display Mode |
Normally White |
|
Display Resolution (pixel) |
1920x1080 |
|
Contrast Ratio |
500:1 |
|
Display Color |
16.2M/262K colors |
| Touch Screen(optional) | PCT Touch(10 Points) |
|
Brightness (CD/㎡) |
220 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
90 (H); 60 (V) |
|
Response Time(Typ.Tr+Tf) |
16ms |
|

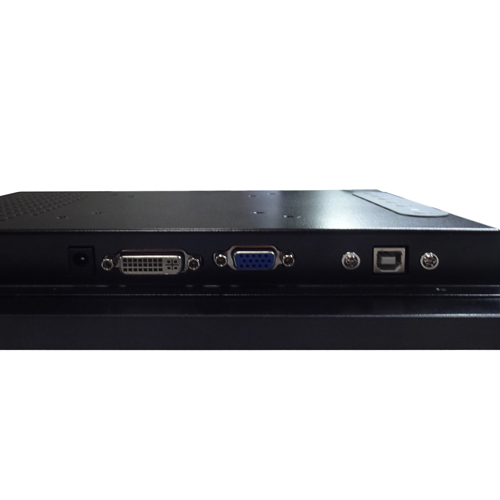

Signal Connector |
VGA/DVI/USB |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
339X224X38.8 |
|
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-20~60℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
