Specifications
|
Model Name |
AMG-17OPEV01T1 |
|
Screen Size |
17" |
|
Active Display Area (mm) |
337.920(H) x 270.336(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
1280x1024 |
|
Contrast Ratio |
1000:1 |
|
Display Color |
16.7M colors |
| Touch Screen(optional) | IR Touchscreen |
|
Brightness (CD/㎡) |
350 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
170 (H); 160 (V) |
|
Response Time(Typ.Tr+Tf) |
5ms |
|

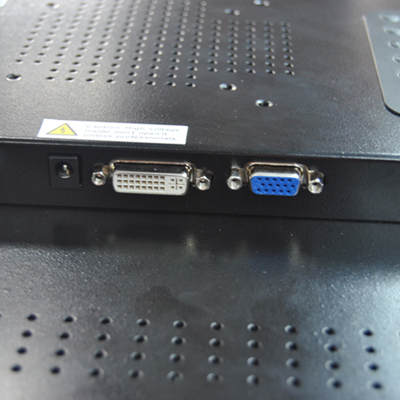

Signal Connector |
VGA/DVI |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
409.4X308X37.3 |
|
Operating Temperature |
-30~80℃ |
|
Storage Temperature |
-30~80℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
