Specifications
|
Model Name |
AMG-06OPPV01T1 |
|
Screen Size |
6.5" |
|
Active Display Area (mm) |
132.48(H) x 99.36(V) |
|
Pixel Pitch (mm) |
0.069 (H) x 0.207 (V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
640x480 |
|
Contrast Ratio |
450:1 |
|
Display Color |
16.2M/262k colors |
| Touchscree(optional) | Resistive touchscreen |
|
Brightness (CD/㎡) |
500 |
|
Backlight |
CCFL/LED |
|
Viewing Angles (CR =10) |
140 (H); 120 (V) |
|
Response Time(Typ.Tr+Tf) |
26ms |
|

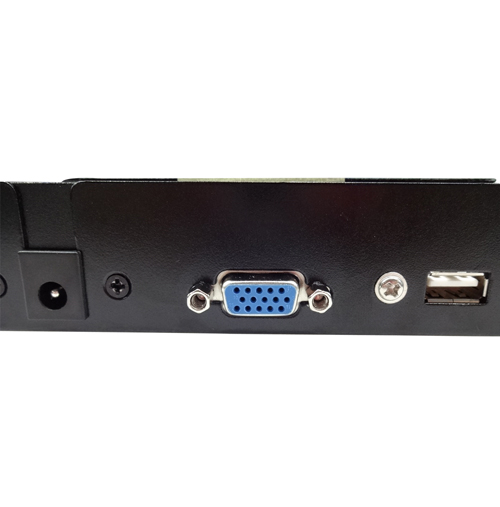

Signal Connector |
VGA/USB |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
199.5X170X36.2 |
|
Operating Temperature |
-10~70℃ |
|
Storage Temperature |
-20~80℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
