Specifications
|
Model Name |
AMG-24IPPC01T1 |
|
Screen Size |
24" |
|
Active Display Area (mm) |
531.36(H)x298.89(V) |
|
Pixel Pitch (mm) |
0.27675(H)x0.27675(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
1920x1080 |
|
Contrast Ratio |
1000:1 |
|
Display Color |
16.7M colors |
| Touch Screnn(optional) |
IR Touchscreen |
|
Brightness (CD/㎡) |
300 |
|
Backlight |
CCFL/LED |
|
Viewing Angles (CR =10) |
170 (H); 160 (V) |
|
Response Time(Typ.Tr+Tf) |
5ms |
|

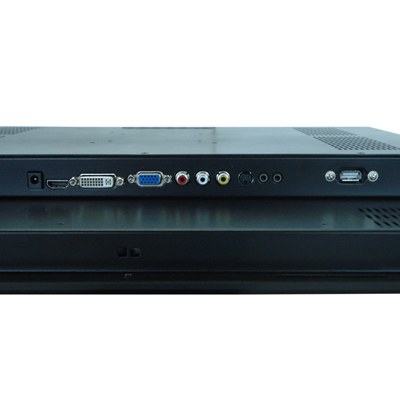

Signal Connector |
VGA/DVI/HDMI/AV/S-Video/Audio |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
636X403.5X62.9 |
|
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-20~60℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
